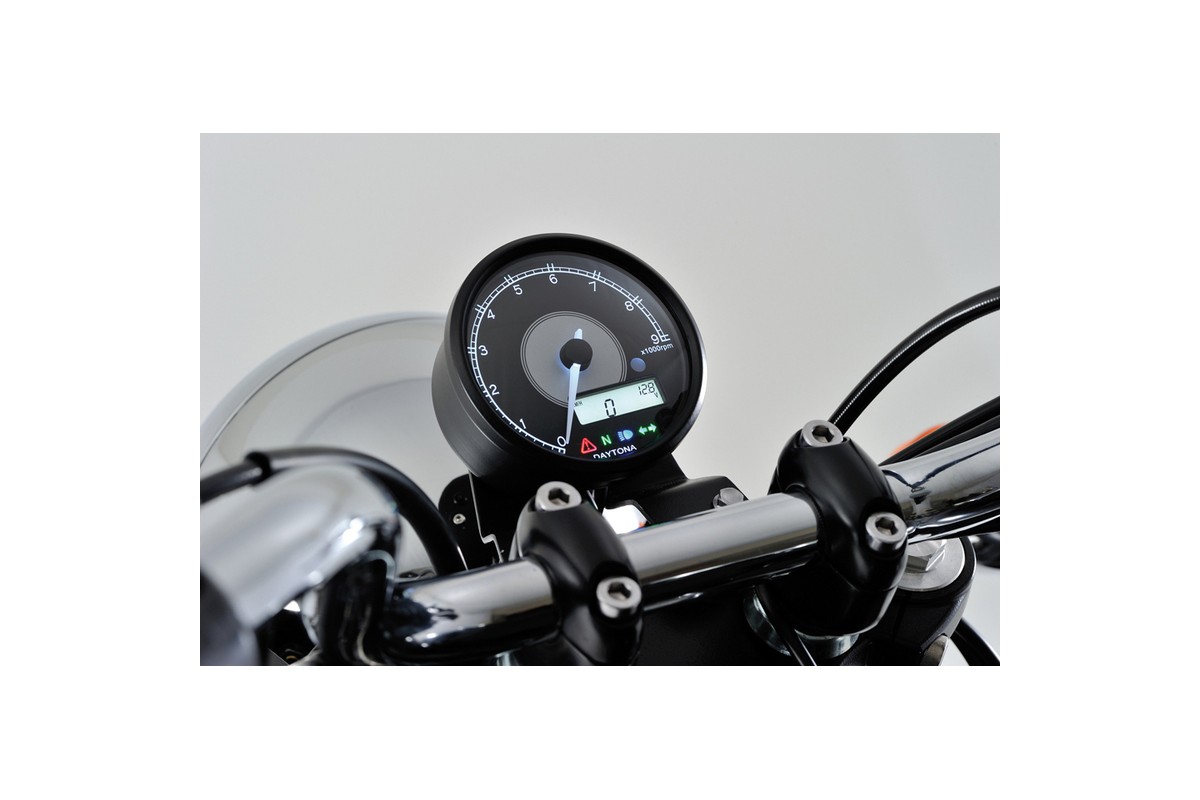

DAYTONA Digital Rev Counter With Speedometer VELONA

VELONA electronic rev counter with speed display from DAYTONA

The rev counter has an analogue speed display and a digital speedometer.

The digital signal from the motorbike is used. The signals from almost all common motorbikes can be converted.
If the motorbike does not provide a digital signal, an active universal speed sensor or a speedometer shaft adapter as well as an induction cable set for determining the speed can be ordered as an option.

Overview:
• Speed and RPM in one instrument
• For motorbikes with an electronic sensor, the signal can be taken from the original pulse generator
• LCD display with many functions
• Display with stepper motor for quick display of the current speed or RPM. RPM
• Bracket included
• Simple adjustment using two buttons on the back
(A handlebar-mounted 2-button remote control can be ordered as an option)
• Only suitable for 12V DC
• Ø 80mm
• Matt black stainless steel housing
• White backlighting
• For motorbikes with electronic sensor, the signal can be taken from the original pulse generator

Functions:
• Speed range: 0-9. 000 or 0-15,000 rpm (analogue display)
• Speedometer: 0-260 km/h(0-260 MPH) (digital display)
• Odometer: 0.0-99. 999.9 km(mile)
• trip odometer: 0.0-99.999.9 km(mile)
• voltmeter: 0.0-18.0 V
• V-Max. Storage
• rpm-Max. Storage
• LED for displaying the optimum switching point
• LEDs for indicators, high beam, idling and a warning LED that can be used for various functions
• Pulse rate adjustable 1P-1r/1P-2r/2P-1r/30P-1r
• Suitable for 12 V
• Incl. bracket Holder

Scope of delivery:
• Tachometer incl. holder Holder

Optional order:
• Active speed sensor universal, item 361-555
• Speedometer shaft adapter, item 361-569
• For speed pick-up at the ignition coil or ignition cable, induction cable set, item 361-550
• 2-button remote control, item 240-065 (bw), 240-066 (cr)
