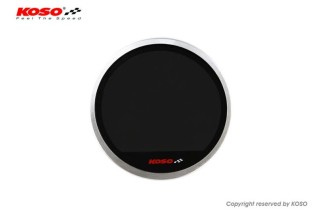

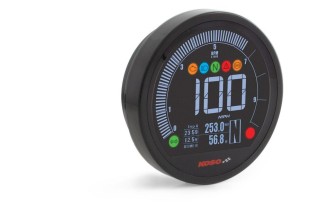

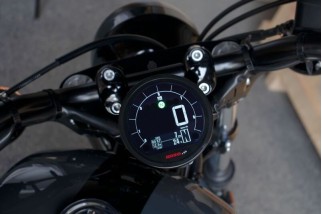

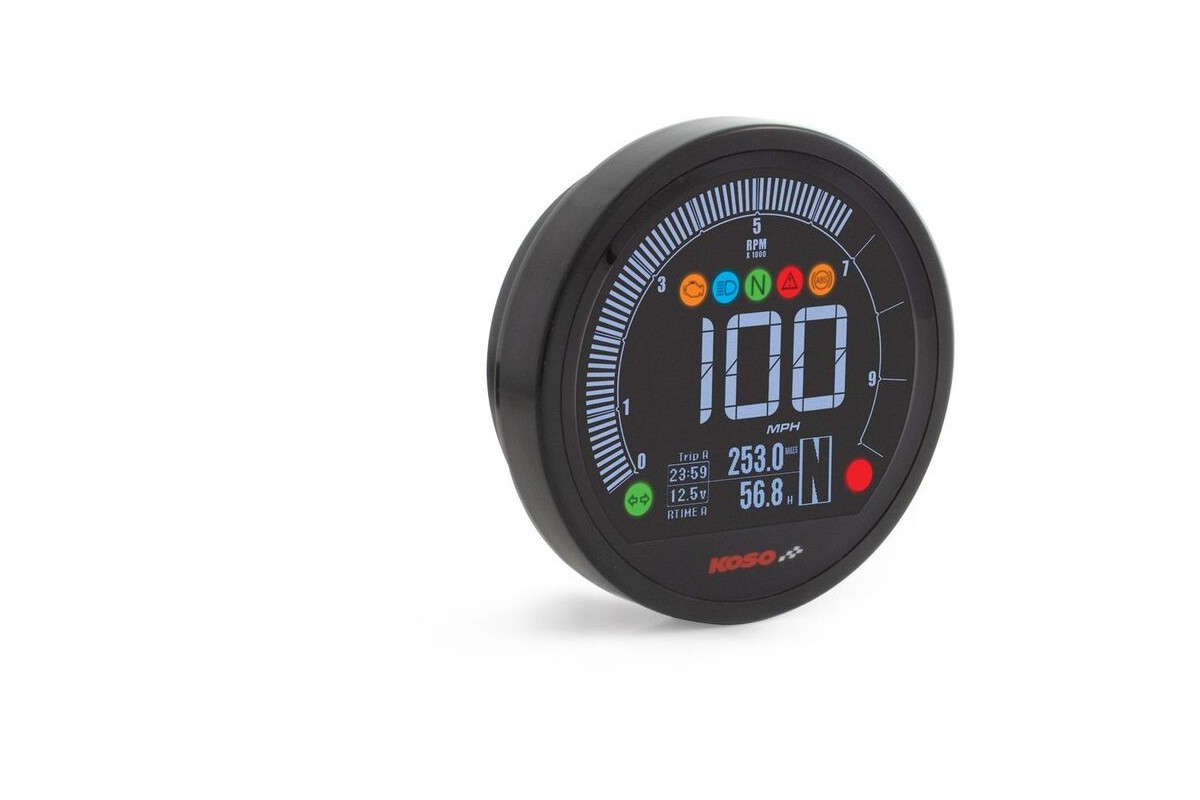

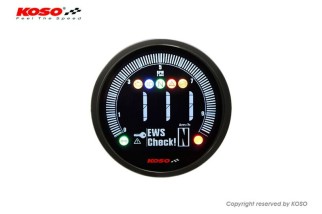

KOSO DL-04 Meter Yamaha Bolt (2022), Black

Vehicle specific digital tachometer DL-04 with speed display and the certain extra in noble black.
Thanks to the matching plugs a plug &amp play solution

Speedometer
R: 0 ~ 225 MPH (0 ~ 360 km/h) switchable
U: 1 MPH or km/h (alternatively)


Speed warning setting
R: 0 ~ 225 MPH (0 ~ 360 km/h), When the set value is exceeded (inclusive) the value flickers and the warning signal lights up depending on the setting.
U: 1 MPH or km/h (alternatively)


Maximum speed recording
R: 0 ~ 225 MPH (0 ~ 360 km/h), can be manually reset to zero
U: 1 MPH or km/h (alternatively)


Odometer
R: 0 ~ 99.999 miles (km)
U: 1 mile (km)


Daily odometer A,B
R: 0 ~ 9, 999.9 miles (km), can be manually reset to zero
U: 0.1 miles (km)


Engine oil maintenance (Trip O):
R: OFF, -999 ~ 16.000 (-999 ~ 10.000 miles), can be reset manually
U: 1 miles (km)


Engine oil maintenance warning
R: OFF, 500 ~ 16.000 km (300 ~ 10.000 miles). When the distance is less than 0 km (mile), the value is displayed on the screen and flickers to warn, and the warning signal lights up according to the setting.
U: 100 miles (km)


Daily odometer F:
R: 0 ~ 9,999.9 miles (km), can be reset manually
U: 0.1 miles (km)


Percentage of tire
R: 50-200%
U: 1%


Gear indicator
R: N, 1 ~ 5


Max. Gear record
R: N, 1 ~ 5, can be manually reset to zero


Tachometer
R: 0 ~ 10.000 rpm
U: 1.000 rpm (large grid) / 111 rpm (small grid)


Switching flash warning
R: 1.000 ~ 10.000 rpm, when the set value is exceeded (inclusive) the warning signal lights up depending on the setting.
U: 100 rpm


Max. RPM recording
R: 0 ~ 10.000 rpm, can be manually reset to zero
U: 100 rpm


Temperature
R: -22 ~ 437 °F (-30 ~ 225 °C)
U: 1°C (1°F)


Overheat Warning
R: 140 ~ 4837 °F (60 ~ 225 °C). When the set heat value is exceeded, the value flickers and the warning signal lights up according to the setting.
U: 1°C (1°F)


Max. Temperature record
R: -22 ~ 437 °F (-30 ~ 225 °C), can be manually reset to zero
U: 1°C (1°F)


Fuel meter
R: ON, OFF, unusual warning


Clock
R: 12 H or 24 H format


Voltage meter
R: DC 8.0 ~ 18.0 V
U: DC 0.1 V


Undervoltage warning
R: 8.0 V ~ 13 V, When the voltage falls below the set warning value for more than five seconds, the value will flicker and the warning signal will light up according to the setting.
U: 0.1 V


Background brightness
R: 1~5 (darkest) - 5~5 (brightest)
U: 1/5 (20%)


Unit
Speed unit: km/h, MPH
Temperature unit: °C (Celsius) and °F (Fahrenheit)


Operating voltage
DC 12V


Operating temperature
-10 ~ +60 °C


Storage temperature
-.20 ~ +80 °C


Specifications
JIS D 0203(S2)


Size
Diameter 96 mm


Weight
approx. 184g

Indicator
Check engine (amber)
High beam (blue)
Neutral (green)
Warning (red)
ABS (amber)
Indicator (green)
Anti-theft (red)


*Registered trademark of Yamaha Corporation.
