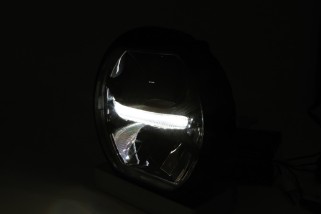

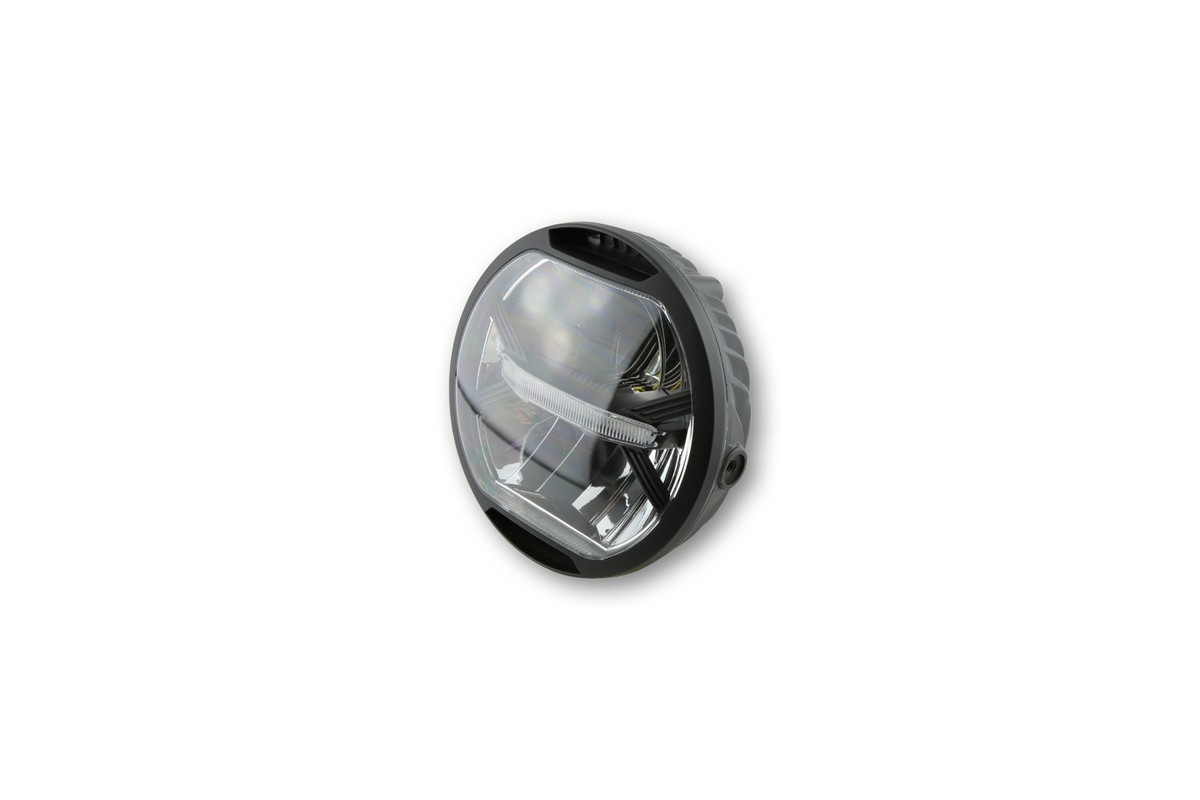

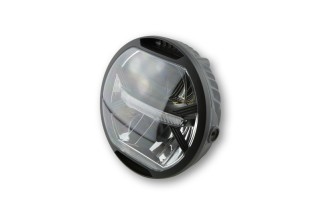

KOSO LED headlight THUNDERBOLT with parking light, black
The futuristic LED headlight with its horizontal parking light strip in the middle has a very flat metal housing. The flat housing with its cooling fins on the rear not only looks great, but also simplifies the mounting on motorcycles where in the headlight area is not so much space to install. The upper and lower air ducts look dynamic and bring cooling airflow
to the cooling fins. In order to be even more flexible when mounting, the spotlight offers mounting options on the side and on the rear. There is an M8 thread on the left and right side. Six M6 threads, two each at the top, in the middle and at the bottom, are additionally
>br/>>>dimensions:
housing diameter: 170 mm
depth: 84 mm
distance between mounting hole (middle) and end of housing: approx. 48 mm
Connections:
3-pin Combination plug
yellow = dipped beam (+)
blue = remote (+)
black = ground (-)
extra cable:
white = position light (+)
black = ground (-)
scope of supply: 1 piece
The futuristic LED headlight with its horizontal parking light strip in the middle has a very flat metal housing. The flat housing with its cooling fins on the rear not only looks great, but also simplifies the mounting on motorcycles where in the headlight area is not so much space to install. The upper and lower air ducts look dynamic and bring cooling airflow
to the cooling fins. In order to be even more flexible when mounting, the spotlight offers mounting options on the side and on the rear. There is an M8 thread on the left and right side. Six M6 threads, two each at the top, in the middle and at the bottom, are additionally
>br/>>>dimensions:
housing diameter: 170 mm
depth: 84 mm
distance between mounting hole (middle) and end of housing: approx. 48 mm
Connections:
3-pin Combination plug
yellow = dipped beam (+)
blue = remote (+)
black = ground (-)
extra cable:
white = position light (+)
black = ground (-)
scope of supply: 1 piece
Détails du produit
1140863
Fiche technique
- Couleur
- Noir
- Position
- Avant
- Conditionnement
- à l'unité
- Homologation
- Homologué CE
- Matériau
- Aluminium
- Type d'éclairage
- LED
Références spécifiques
Compatibilités
Nous ne disposons actuellement pas d'informations de compatibilité pour ce produit. Veuillez contactez notre service client pour vérifier la compatibilité de ce produit avec votre modèle.
